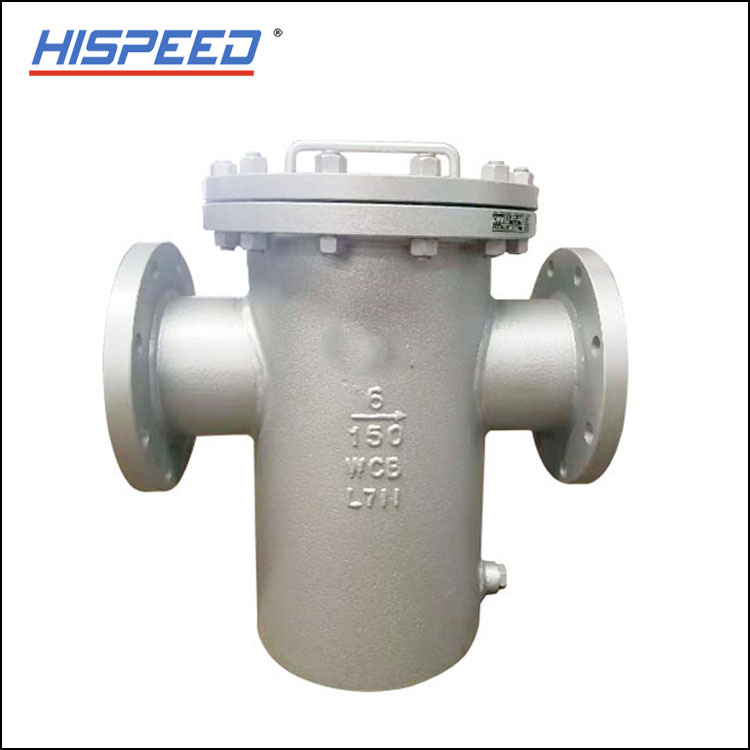

We supply Cast Steel Basket Strainer.The Cast Steel Basket Strainer provides full flow with minimal pressure drop.The Cast Steel Basket Strainer features a flange, easy installation and accessibility. The HISPEED® flanged Cast Steel Basket Strainers may be used in commercial and industrial applications,including chemical,biochemistry,pulp&paper,chemical fiber,pharma- ceutical，environmental protection etc.Choose HISPEED® Cast Steel Basket Strainers for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications.We are expecting to become your long term partner in China.
The Cast Steel Basket Strainer provides full flow with minimal pressure drop.The Cast Steel Basket Strainer features a flange, easy installation and accessibility.The HISPEED® flanged Cast Steel Basket Strainers may be used in commercial and industrial applications,including chemical,biochemistry,pulp&paper,chemical fiber,pharma-ceutical，environmental protection etc.Choose HISPEED® Cast Steel Basket Strainers for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications.We are expecting to become your long term partner in China.Being a result of ours specialty and service consciousness, our corporation has won a very good status amid buyers all over the world for Factory wholesale China Cast Steel/Cast Iron Flanged End Y-Strainers, We welcome shoppers, enterprise associations and mates from all sections of your environment to call us and seek out cooperation for mutual advantages. Factory wholesale China Strainers, Cast Steel Y-Strainers, We warmly welcome domestic and overseas customers to visit our company and have business talk. Our company always insists on the principle of "good quality, reasonable price, the first-class service". We are willing to build long-term, friendly and mutually beneficial cooperation with you.
Product Parameter (Specification)
DIMENSIONS(mm) Class150
|
NPS |
DN |
L |
D |
D1 |
D2 |
b |
n-d |
H |
H1 |
T(NPT) |
W.T(Kg) |
|
2 |
50 |
215.9 |
152 |
120.7 |
92 |
15.9 |
4-19 |
108 |
138 |
1/2 |
16 |
|
2.5 |
65 |
206.4 |
178 |
139.7 |
105 |
17.5 |
4-19 |
121 |
140 |
3/4 |
16 |
|
3 |
80 |
222.3 |
190 |
152.4 |
127 |
19.1 |
4-19 |
140 |
149 |
3/4 |
21 |
|
4 |
100 |
292 |
229 |
190.5 |
157 |
23.9 |
8-19 |
152 |
200 |
1 |
32 |
|
5 |
125 |
311.2 |
254 |
215.9 |
186 |
23.9 |
8-22 |
143 |
260 |
1 |
49 |
|
6 |
150 |
352.4 |
279 |
241.3 |
216 |
25.4 |
8-22 |
170 |
318 |
1 1/4 |
76 |
|
8 |
200 |
441.3 |
343 |
298.5 |
270 |
28.5 |
8-22 |
203 |
384 |
1 1/2 |
106 |
|
10 |
250 |
549.3 |
406 |
362 |
324 |
30.2 |
12-25 |
264 |
406 |
1 1/2 |
182 |
|
12 |
300 |
635 |
483 |
431.8 |
381 |
31.8 |
12-25 |
314 |
603 |
2 |
313 |
|
14 |
350 |
1197 |
533 |
476.3 |
413 |
35 |
12-29 |
513 |
873 |
2 |
- |
|
16 |
400 |
1197 |
597 |
539.8 |
470 |
36.6 |
16-29 |
513 |
873 |
2 |
- |
DIMENSIONS(mm) Class300
|
NPS |
DN |
L |
D |
D1 |
D2 |
b |
n-d |
H |
H1 |
T(NPT) |
W.T(Kg) |
|
2 |
50 |
215.9 |
165 |
127 |
92 |
22.2 |
8-19 |
108 |
138 |
1/2 |
16 |
|
2.5 |
65 |
220.7 |
190 |
149.2 |
105 |
25.4 |
8-22 |
121 |
140 |
3/4 |
18 |
|
3 |
80 |
242.9 |
210 |
168.3 |
127 |
28.6 |
8-22 |
140 |
149 |
3/4 |
25 |
|
4 |
100 |
298.5 |
254 |
200 |
157 |
31.8 |
8-22 |
152 |
200 |
1 |
39 |
|
5 |
125 |
333.4 |
279 |
235 |
186 |
34.9 |
8-22 |
143 |
260 |
1 |
55 |
|
6 |
150 |
374.7 |
318 |
269.9 |
216 |
36.5 |
12-22 |
170 |
318 |
1 1/4 |
89 |
|
8 |
200 |
460.4 |
381 |
330.2 |
270 |
41.3 |
12-25 |
203 |
384 |
1 1/2 |
132 |
|
10 |
250 |
581 |
445 |
387.3 |
324 |
47.6 |
16-29 |
264 |
406 |
1 1/2 |
208 |
|
12 |
300 |
644.5 |
521 |
450.8 |
381 |
50.8 |
16-32 |
314 |
603 |
2 |
358 |
|
14 |
350 |
1197 |
584 |
514.3 |
413 |
54.0 |
20-32 |
513 |
873 |
2 |
- |
|
16 |
400 |
1197 |
648 |
571.9 |
470 |
57.2 |
20-35 |
513 |
873 |
2 |
- |
Product Feature And Application
Basic Design：ASME B16.34
Face to Face Dimensions：Manufactory Standard
End Flange Dimensions：ASME B16.5
Butt Welding End：ASME B16.25
Inspection and Test：ASME B16.34
Materials：ASTM
Product Details
|
PART NAME |
MATERIAL |
|||
|
CARBON STEEL |
STAINLESS STEEL |
HIGH-TEMPERATURE STEEL |
||
|
BODY |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
ASTM A217 WC6 |
|
SCREEN |
304 |
304 |
316 |
304 |
|
GASKET |
304+GRAPHITE |
304+GRAPHITE |
316+GRAPHITE |
304+GRAPHITE |
|
COVER |
ASTM A216 WCB |
ASTM A351 CF8 |
ASTM A351 CF8M |
ASTM A217 WC6 |
|
STUD |
ASTM A193 B7 |
ASTM A193 B8 |
ASTM A193 B8 |
ASTM A193 B16 |
|
NUT |
ASTM A194 2H |
ASTM A194 8 |
ASTM A194 8 |
ASTM A194 4 |
|
PLUG |
A105 |
304 |
316 |
304 |
Deliver,Shipping And Serving
Ship from Qingdao or another Seaports
FAQ
|
|
Q |
A |
|
1 |
How many days you need to install the equipment? |
Unwanted. |
|
2 |
How many staff abroad you sent to install the equipment? |
Unwanted. |
|
3 |
Can I transfer the money to you then you pay to other supplier? |
YES. |
|
4 |
Can I delivery the goods from other supplier to your factory? Then load together? |
YES. |
|
5 |
When will you leave your factory and to have your spring festival holidays? |
According to national regulations. |
|
6 |
Can the equipment be installed under hot weather? |
YES. |
|
7 |
Can Your products be installed under the cold weather? |
YES. |
|
8 |
Do You have office in shanghai or guangzhou that i can visit? |
NONE. |
|
9 |
Can you send your staff to install the equipment for us? |
Unwanted. |
|
10 |
Can I only buy some spare parts from you? |
YES. |
|
11 |
Will you will attend the fair to show your products? |
YES. |
|
12 |
Can you send your equipment to my warehouse in guangzhou? |
YES. |
|
13 |
How long it takes you to provide the designing options for us? |
3 days at most. |
|
14 |
What is your products standardization? |
AWWA BS AIP WRAS FM. |
|
15 |
How do you pack the equipment? |
Negotiate with the customer. |
|
16 |
Can you can design the equipment according to our size? |
YES. |
|
17 |
How many years have your company made this kind of equipment? |
5 years. |
|
18 |
Which certificate do you have for your equipment? |
FM. |
|
19 |
How many staffs do you have in your factory? |
200 |
|
20 |
Do you have any agent in our country? |
NONE. |
|
21 |
Do you have any real project pictures of the equipment? |
YES. |
|
22 |
How far is your factory from the city hotel? |
10 km. |
|
23 |
How far is your factory from the airport? |
10 km. |
|
24 |
How long it will take from guangzhou to your factory? |
5 hours. |
|
25 |
Where is your factory located? |
Weifang City,Shandong province. |
|
26 |
Do you provide free spare parts? |
It depends. |
|
27 |
What is the age range for your products? |
Everyone. |
|
28 |
Do you have detailed and professional installation manual? |
YES. |
|
29 |
If OEM is acceptable? |
YES. |
|
30 |
Do you provide sample? Free or charge? |
It depends. |
|
31 |
What is your term of payment? |
30% payment in advance, 70% paid before shipment. |
|
32 |
What is your MOQ? |
One container. |
|
33 |
Are you a trading company or a manufacturer? |
Trade and Industry combination group company. |
|
34 |
How long is your delivery time? |
25-40 days. |
